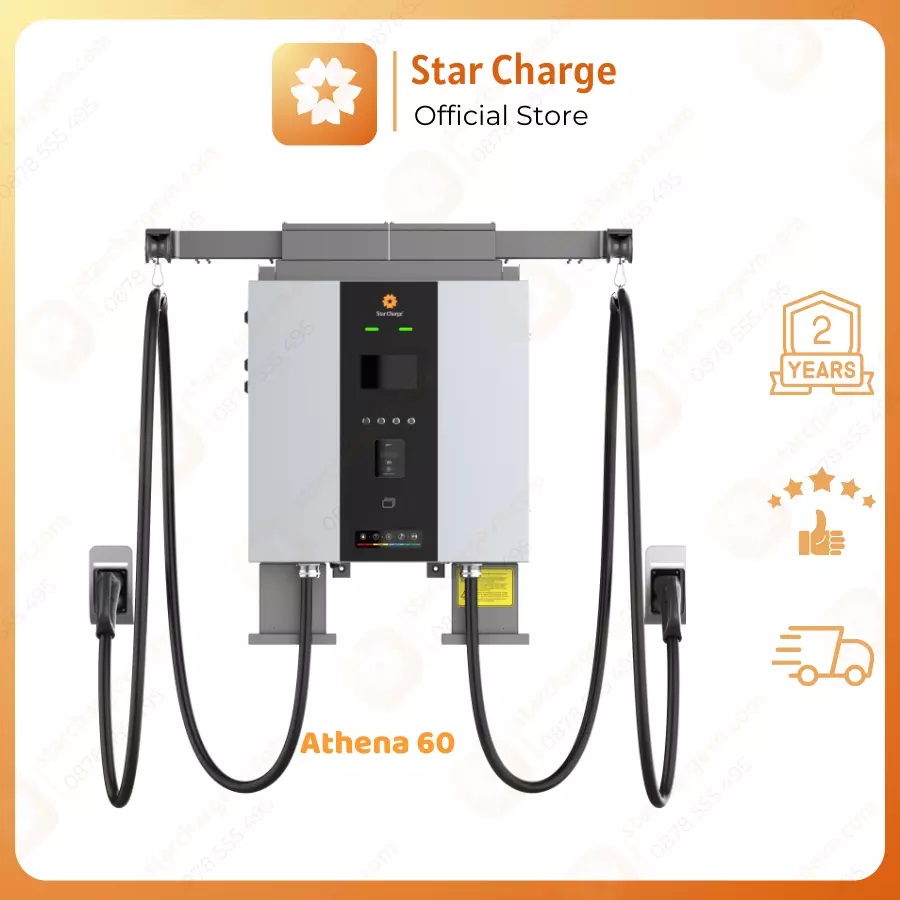

ATHENA 60 STAR CHARGE electric car charger CCS2 port - GENUINE

ATHENA 60 STAR CHARGE electric car charger CCS2 port - GENUINE



1. Product information of Athena 60 car charger:



- From China.

– Brand: Star Charge.

– Product line: DC charger.

– Classification: Athena 60.

– Condition: new.

– Specification: black.

– Dimensions: (WxHxD) 750*750*350mm.

.- Weight: approximately 95kg.

– Target users: all types of electric cars with CCS2 or CHAdemo port, Vinfast car charger, car charger at home.

– Warranty:  2 years.

2. ATHENA 60 STAR CHARGE electric car charger with CCS2 port - GENUINE is a charger with CCS2 or CHAdemo. Maximum charging capacity is 22kw/32A.



3. Uses



ATHENA 60 STAR CHARGE electric car charger CCS2 port - GENUINE has the following uses:

– Over-current, over-voltage, over-temperature, reverse and short circuit protection, helping to protect the safety of electric vehicles and users.

– In addition, the Athena 60 home car charger is a home charger that automatically shuts off power when it reaches a full battery level, helping to ensure safe and effective charging.

– Suitable for all car models with CCS2 or CHAdemo charging port and use Vinfast car chargers for all models.





4. Technical specifications for electric car charger:



– Input voltage threshold: Input Rating 400Vac±10%, 3 phases, 50/60Hz, L1+L2+L3+N+PE

- Output:

Output interface: CCS2 + CCS2 or CCS2 + CHAdemo.

Maximum AC output power: 60kW max.

Rated output: 200-1000Vdc.

CCS2: 200A max./connector, CHAdeMO: 125A max./connector

– Mesh type: TN-S, TN-C, TN-C-S, TT, IT.

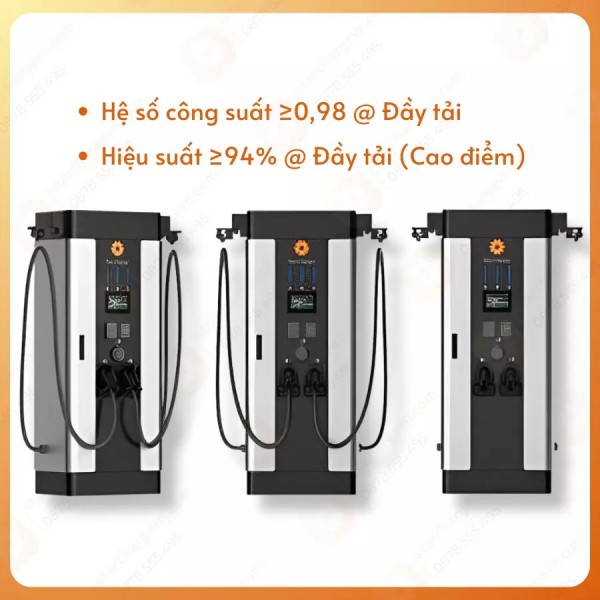

– Power factor ≥0.98 @ Full load

– Efficiency ≥94% @ Full Load (Peak)



5. User interface:



– Display 7 inch touch screen.

– Language support English (Other languages ​​available upon request).

– Buttons and Switches Emergency Button.

– User authentication RFID Card, App, Credit Card (optional).

– RFID reader ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693.



6. Connect



– Network interface: 4G, Wifi (optional), Ethernet.

– Protocol: (EVSE&Backend) OCPP 1.6J.

– Protocol: (EVSE&EV) DIN 70121, ISO 15118.



7. Operating environment



– Operating temperature -30℃ to 50℃.

– Storage temperature -40℃ to 70℃.

– Humidity 5% to 95% non-condensing.

– Altitude ≤2000m above sea level.



8. Mechanical parameters:



– Installation: Fixed installation on the ground

– Cable length: 4.5m.

– IP waterproof and dustproof protection level: IP55.

– IK bearing level: IK10.



9. Certification and standards for Athena 60 car charger



– Standards: IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU.

– Certificate: CE.

———————-
