Jupiter 60 V3 STAR CHARGE electric car charger, 2CCS port, Type 2 – GENUINE

Jupiter 60 V3 STAR CHARGE electric car charger, 2CCS port, Type 2 – GENUINE

1. Product information:

- From China.

– Brand: Star Charge.

– Product line: AC charger.

– Classification: Jupiter 60 V3.

– Condition: new.

– Specification: light gray

– Dimensions: 1894x1050x710mm (including cable management system)

1650x700x457mm (excluding cable management system).

– Weight: approximately 200 kg.

– Warranty:  2 years.

2. Jupiter 60 V3 STAR CHARGE electric car charger 2CCS port, Type 2 - GENUINE is a charging line with  CCS2 + Type 2. Maximum DC output power 60kW + Maximum AC 22kw.



3. Uses



Jupiter 60 V3 STAR CHARGE electric car charger, 2CCS port, Type 2 - GENUINE has the following uses:

– Over-current, over-voltage, over-temperature, reverse and short circuit protection, helping to protect the safety of electric vehicles and users.

– In addition, Jupiter 60 V3 also has an automatic power-off feature when the battery level is full, helping to ensure safe and effective charging.

– There are 2 charging ports, DC fast charging and AC normal charging.

4. Technical specifications:

– Input: 400Vac±10%, 50/60Hz, 3P+N+PE.

- Output:

Output interface 2 x CCS2 + Type 2

Output power DC max 60kW + AC max 22kw

Output voltage CCS2: 150-1000Vdc, Type2: 400Vac±10%

Output current CCS2: 200A max./connector, Type2: 32A max.

– Charging mode Supports simultaneous charging of 2 x CCS2 and Type 2

– Input parameters 400Vac±10%, 50/60Hz, 3P+N+PE

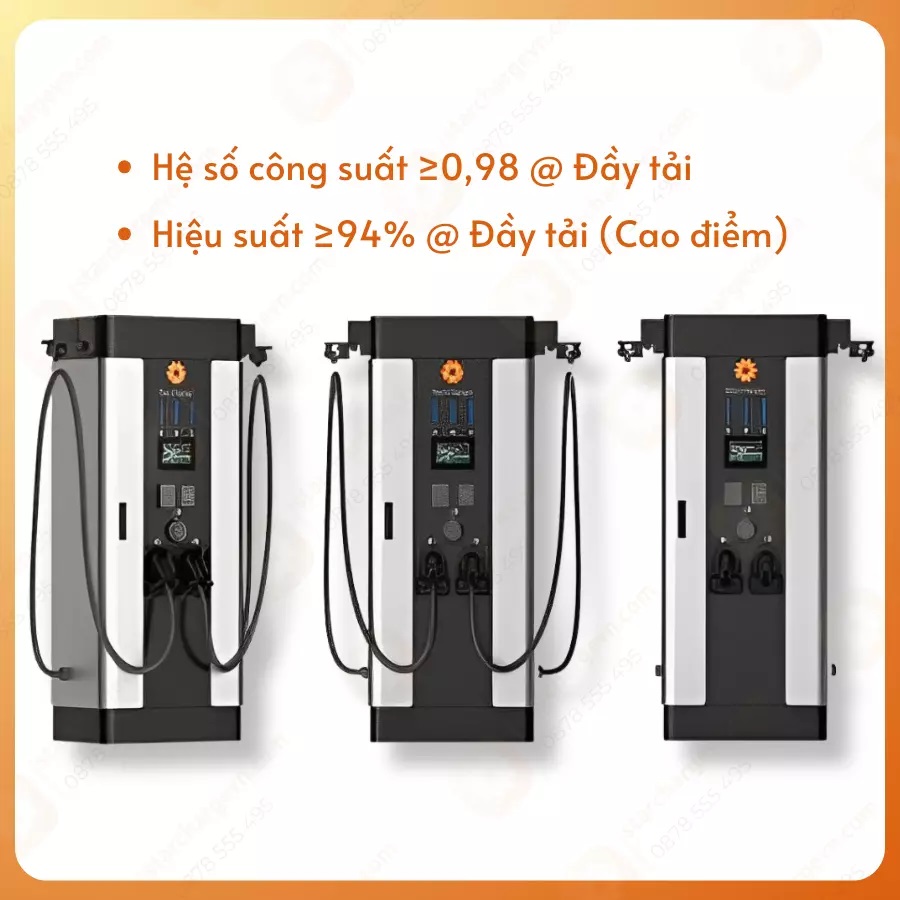

– Power factor ≥0.98 @ Full load

– Efficiency ≥94% @ Full Load (Peak)

– Mesh types TN-S, TN-C, TN-C-S, TT

– Output interface 2 x CCS2 + Type 2

– Output power DC maximum 60kW + AC maximum 22kw

– Output voltage CCS2: 150-1000Vdc, Type2: 400Vac±10%

– Output current CCS2: 200A max./connector, Type2: 32A max.



5. User interface:



– Display 7 inch touch screen.

– Language support English (Other languages ​​available upon request).

– Buttons and Switches Emergency Button.

– User authentication RFID Card, App, Credit Card (optional).

– RFID reader ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693.

6. Connect



– Network interface: 4G, Wifi (optional), Ethernet.

– Protocol: (EVSE&Backend) OCPP 1.6J.

– Protocol: (EVSE&EV) DIN 70121, ISO 15118.



7. Operating environment

– Operating temperature -30℃ to 55℃.
– Storage temperature -40℃ to 70℃.
– Humidity 5% to 95% non-condensing.
– Altitude ≤2000m above sea level.

8. Mechanical parameters:

– IP rating IP55
– IK rating IK10
– Cooling Forced cooling
– Charging cable length 5m
– Installation: Fixed installation on the ground

9. Certification and standards

– Standards: IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU.
– Certificates:  CE, CB, UKCA.
